YoloLiv Instream, The Ultimate All-in-one Vertical Live Video Streaming Equipment Encoder, Switcher, Recorder, Monitor for Instagram, Tiktok…

• Vertical Streaming To Instagram & TikTok: Created by YoloLiv(the maker of YoloBox | Mini | Pro), Instream is the Industry's First & Only VERTICAL Live Streaming Studio that allow users to stream to Instagram & TikTok easily and intuitively with simple touch screen control, just like smartphone, without the need of computer and OBS. It's Wildly Advanced, Yet Brilliantly Simple.

• All-In-One Versatility: YoloLiv Instream is a full HD live broadcast device integrating encoder, switcher, monitor and recorder, with built-in battery and native support for 4G LTE, WiFi, Ethernet. Perfect for traditional videography customer groups, like worship, weddings/funerals, sport, events, education, and NEW verticals like creators, influencers, storytellers, live-sellers and much more.

• All Pro Software Features Built-In: Various customizable graphic overlays(Logos/Watermarks/LowerThirds/Scoreboard/Social overlay/Animated Countdown Timers/) are all built-in with no additional cost. Users can also Feature Comment Overlays to the Stream to engage with your audience in real time. The built-In Chroma key is super easy to use to create stunning effects. Multiview/Picture in Picture templates are also there to make your live stream look great. Web URL overlay for best live graphic experiences.

• Wildly Advanced, Yet Brilliantly Simple: Instream has 2 HDMI inputs, 1 USB input, plus local SD card video sources and PDF source from SD card, 1 Mic in, 1 Line in, 1 HDMI out, 1 Audio out. It can live stream and switch with multiple sources. The 8-inch touch screen design is still super-easy to operate. It’s brighter with 600 nits and more responsive! With a much increased built-in 10,000mAh battery, it has over 3-hour battery life. The Enhanced CPU opens the door to expanded capabilities of upcoming software features to make it more powerful.

• Continuous Improvement & NEW Features: We pride ourselves with industry's most diligent and responsive engineering team. We are continuously adding new features(based on customers' requests) to make your production next-level. Customers could always easily get the update for free by a simple tap. As the new default for mobile video production and consumption, JOIN THE VERTICAL VIDEO REVOLUTION.

Vertical Streaming Made Easy

YoloLiv is a tech startup dedicated on live streaming hardware, software, enterprise applications, with the mission to make professional live streams accessible for everyone.

Instream is the Industry's First & Only VERTICAL Live Streaming Studio that allow users to stream to Instagram & TikTok easily and intuitively with simple touch screen control, just like smartphone, without the need of computer and OBS. It's Wildly Advanced, Yet Brilliantly Simple.

• Dimensions & Weight



  Height: 25mm

  Width: 112.5mm

  Length: 188mm

  Weight: 600g

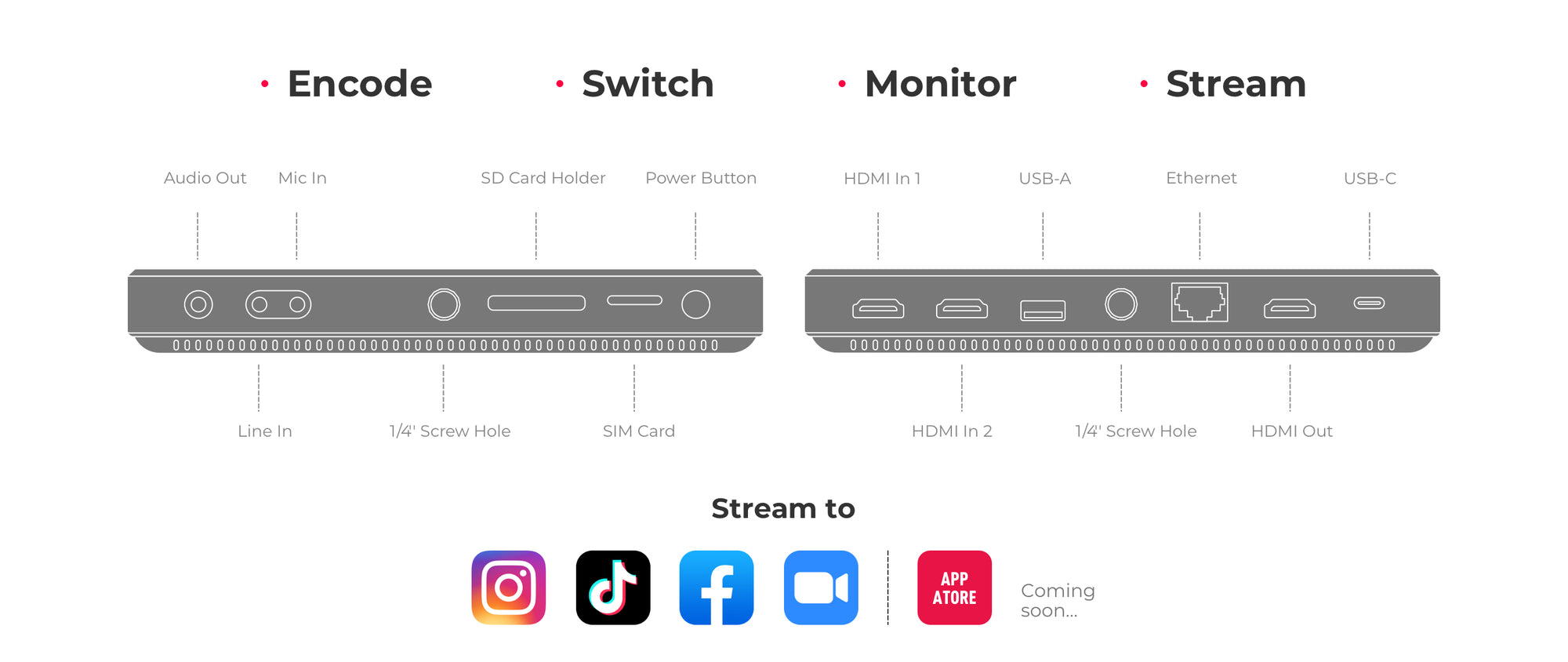

  Ports



  • 1HDMI IN: Video input
  • 2HDMI IN: Video input
  • 3USB-C: Video input
    (Please note in some USB webcams, only video can be captured.)
  • 41/4" Screw Hole: Mount Instream Mini with camera
  • 5ETHERNET PORT: Connect to Internet by Ethernet cable
  • 6HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
  • 7USB-C: Only for charging
  • 8AUDIO OUT: Connect with 3.5mm monitor headphones
  • 9LINE IN: Stereo, connect to electric guitar or synthesizer
  • 10MIC IN: Mono, connect to microphone for recording
  • 11SD Card Slot: Used for recording and loading graphics
  • 12SIM Card Slot: Insert SIM card to connect to Internet
  • 13Power Button: Turn on and turn off
  Encoded Format

  • Video Encoded Format：H.264
  • Audio Encoded Format：（AAC)44.1K 2Ch 16bit
  • Video Recorded format：MP4
  • Audio Input Format：32KHZ/44.1KHZ/48KHZ :16bit
  • Live Broadcast Resolution：480P/720P/1080P
  • Frame Rate: Up to 60 fps
  Video Storage

  • Storage Card Type：SD Card
  • Storage Card Type：SD Card
  • File System for SD Card: FAT32, exFAT, NTFS
  Network Connection

  • WiFi: 2.4G/5G
  • 4G Network: Global standard
  • SIM Card Size: Nano card
  CPU

  • QualComm Snapdragon 845, 8-core Processo
    Even more powerful than YoloBox Pro
  Power

  • Power Interface：Type C, Quick Charge 3.0
  • Battery Capacity：10000mAh
  • Input power rating: DC5V 3A,9V 2A,12V 1.5A
  • Power Consumption: ＜18W
  Transmission

  • Network Protocol：RTMP/RTMPS

Working Environment

• Operating Temperature：0℃-40℃
• Operating Humidity: 15%-85%, No Condensation

           What‘s in the box？

• 1-Instream
• 2-Instream User Manual
• 3-SIM Card Eject Pin
• 4- Hotshoe Mount
• 5-USB Charge Cable
